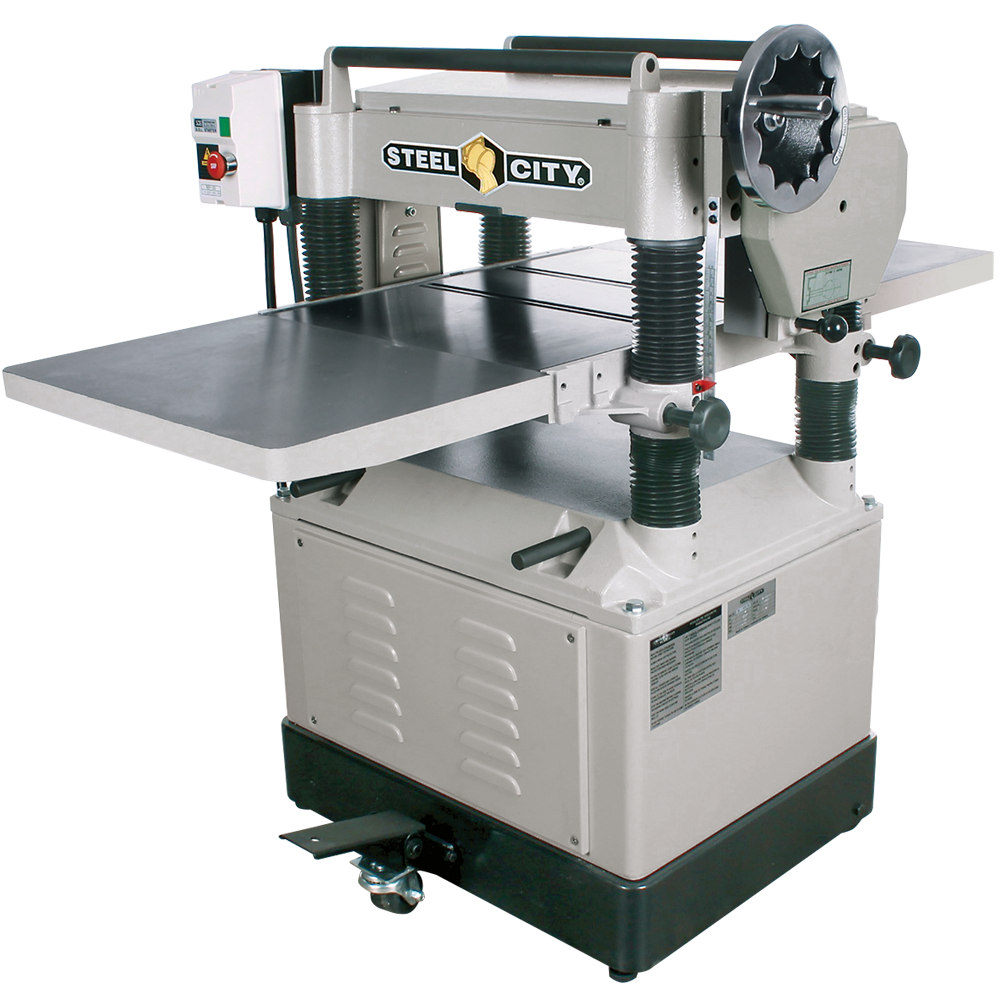

20'' Planer with Helical Cutterhead 35-410H S3
Regular price
$6,499.99
Shipping calculated at checkout
SKU: 35-410HS3
Characteristics
- Heavy duty cast iron frame
- 2 cast iron extension tables

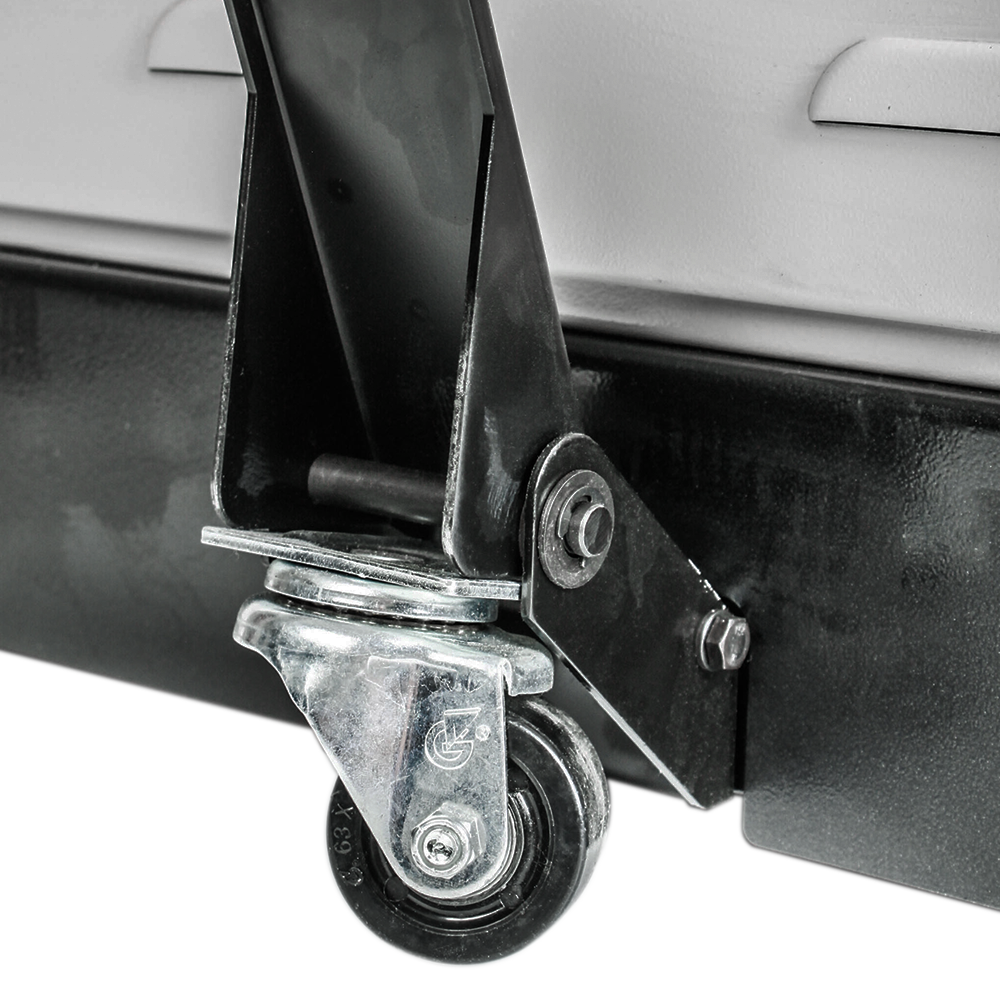

- Integrated mobile base

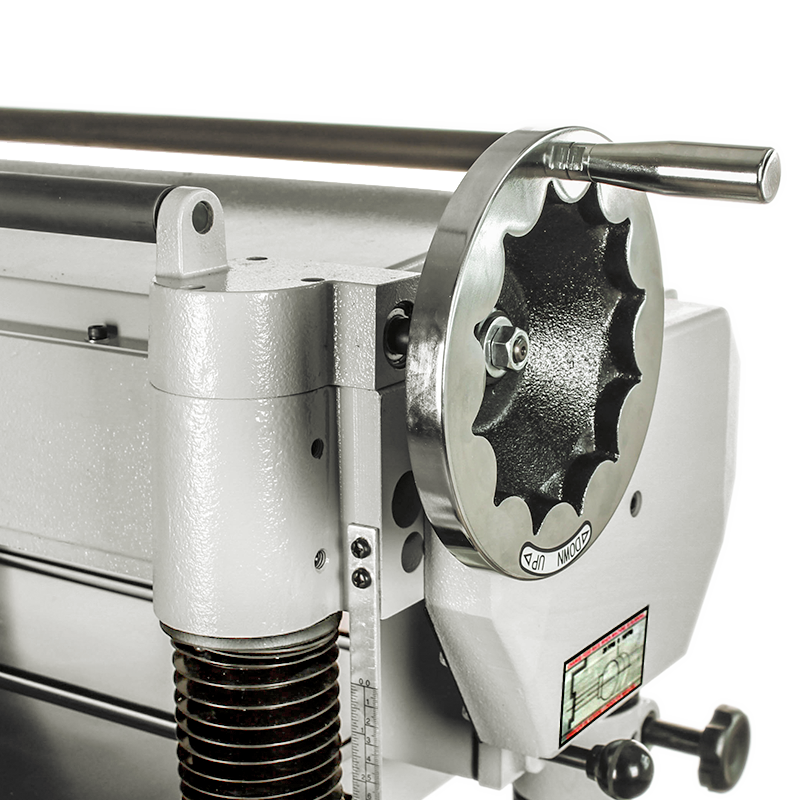

- Hand wheel for thickness adjustment

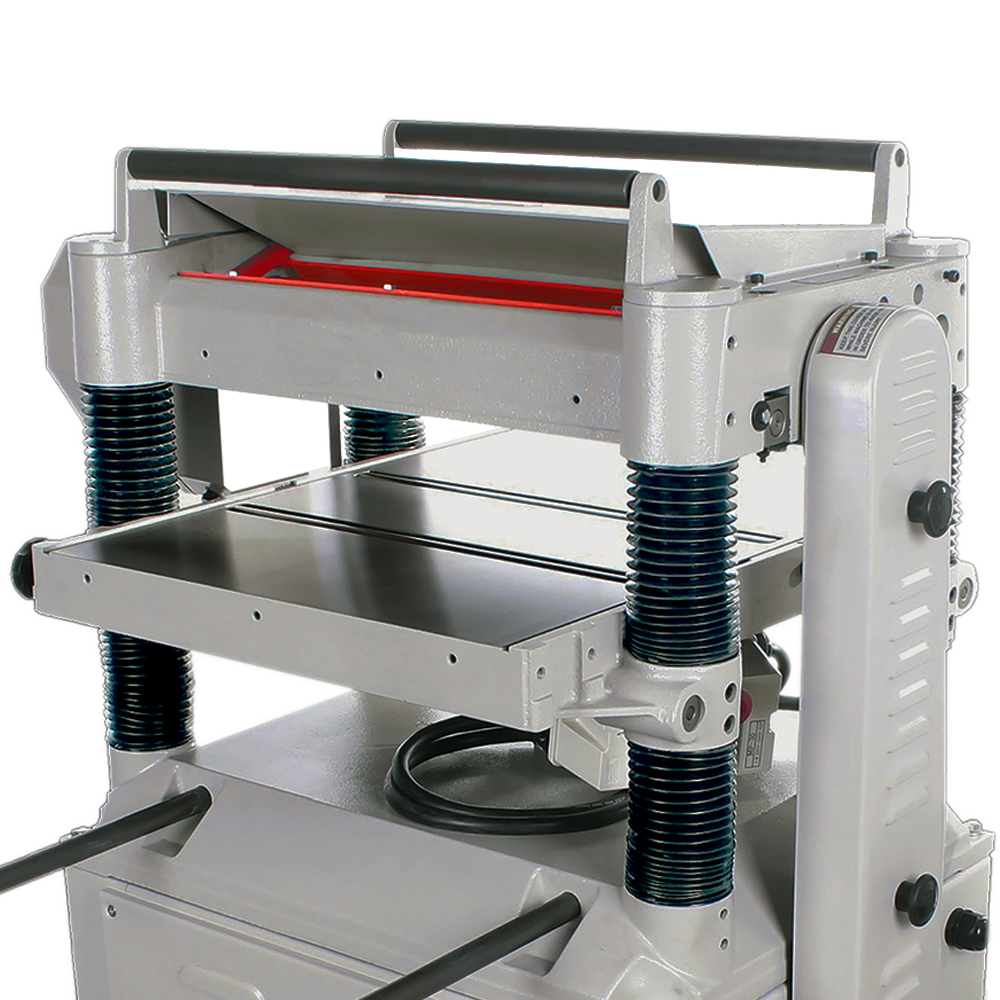

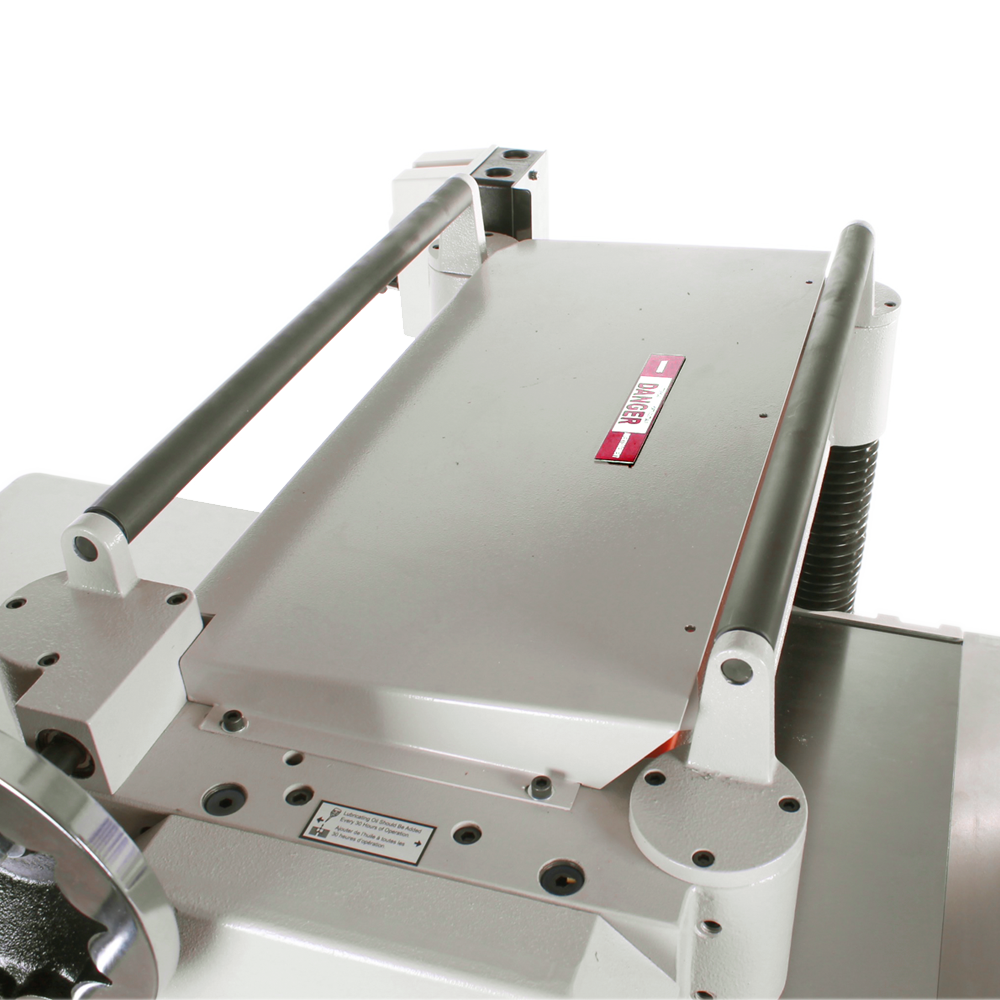

- 2 return rollers

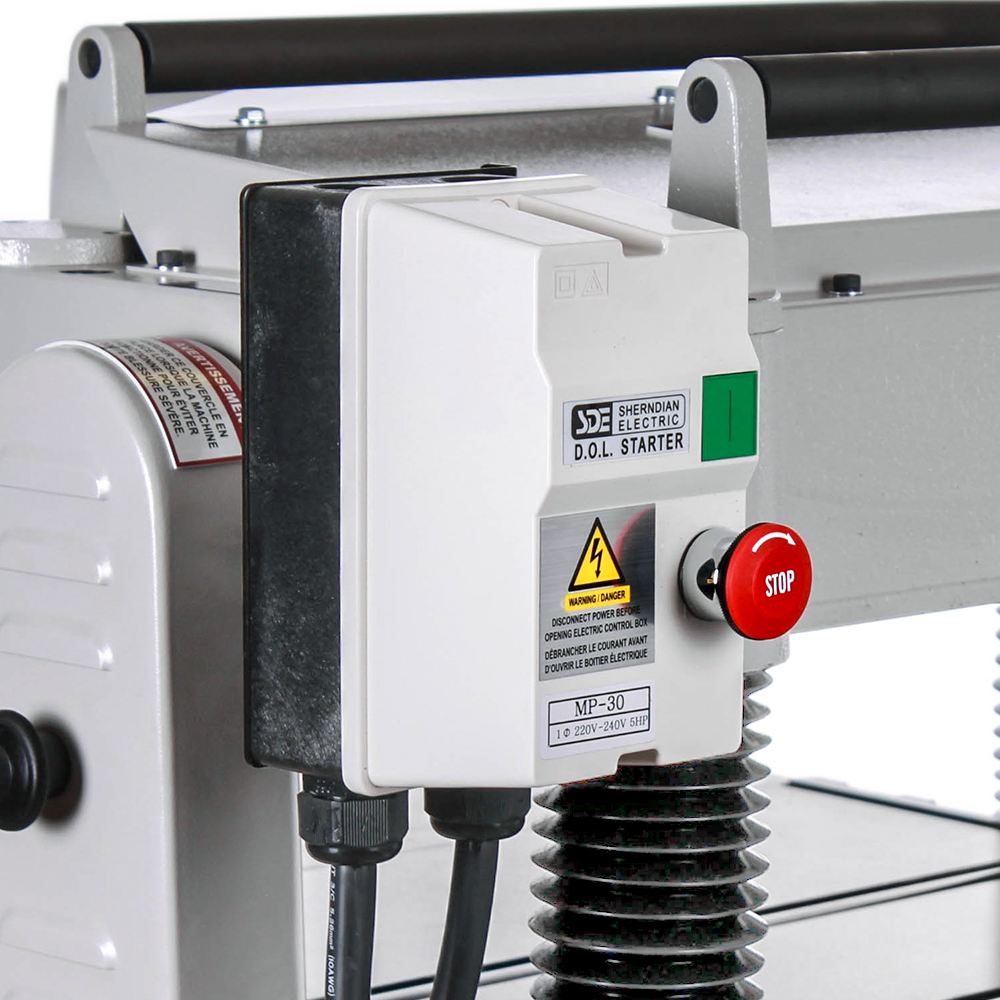

- Magnetic switch
- 5” dust collection outlet

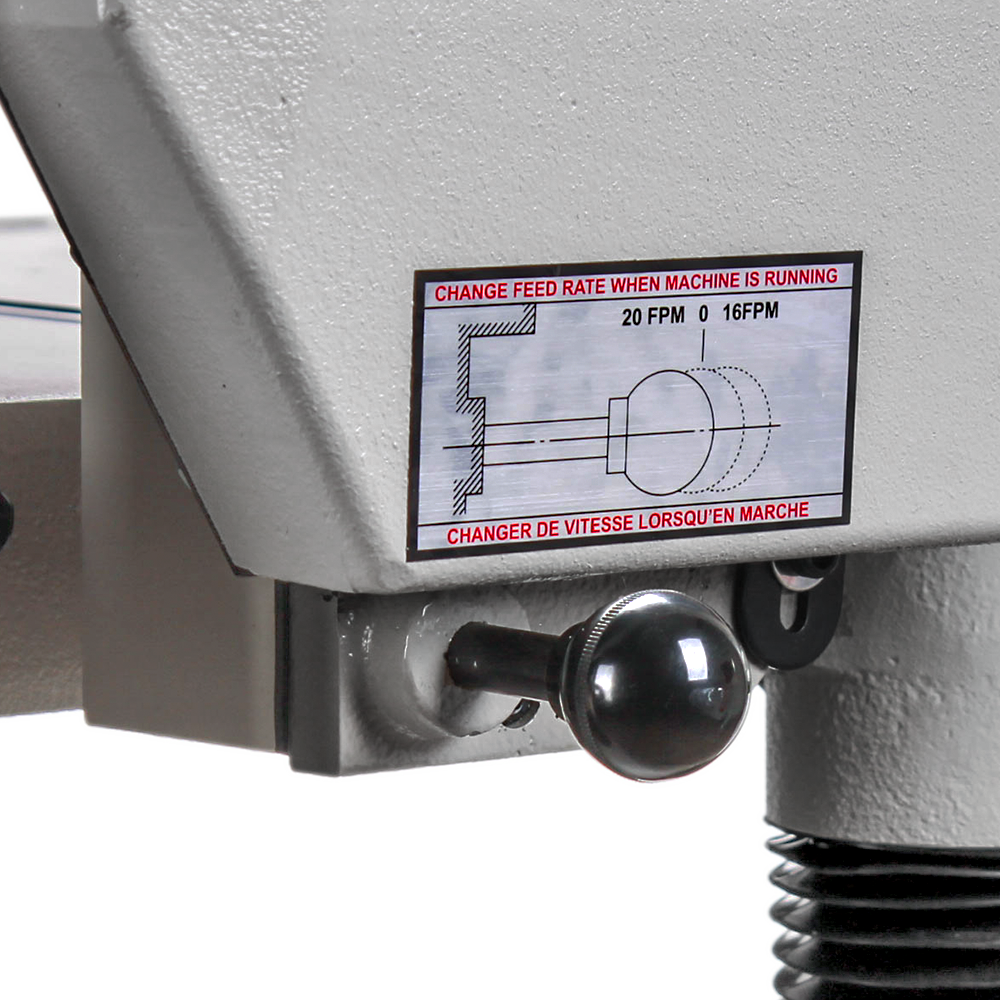

- 2 feed speeds: 16 and 20 ft/min

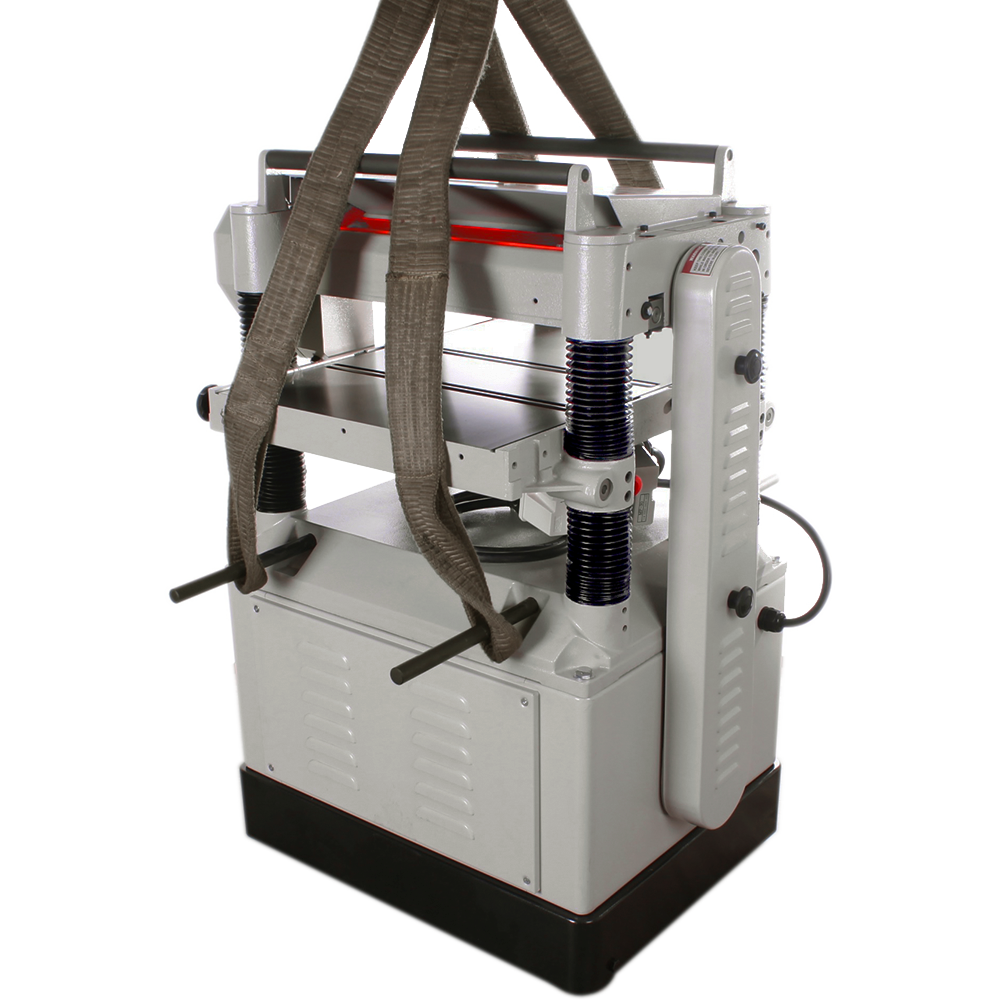

- Removable lifting bars
Technical Specifications
| Motor |
5 HP - 220 V - 1 ph - 25 A |
| Capacities: |
|
| Width |
20” ( 508 mm ) |
| Min Length |
6 3/4” ( 171 mm ) |
| Thickness |
1/4” to 8” ( 6 to 203 mm ) |
| Rotation |
5000 RPM |
| Cutter head |
58 carbide reversible inserts |
| 2 Feed Speeds |
16 and 20 ft/min / 4,9 and 6,1 m/min |
| Total table dimensions |
55” x 20” ( 653 x 510 mm ) |
| Shipping weigh |
926 lb / 420 kg |
