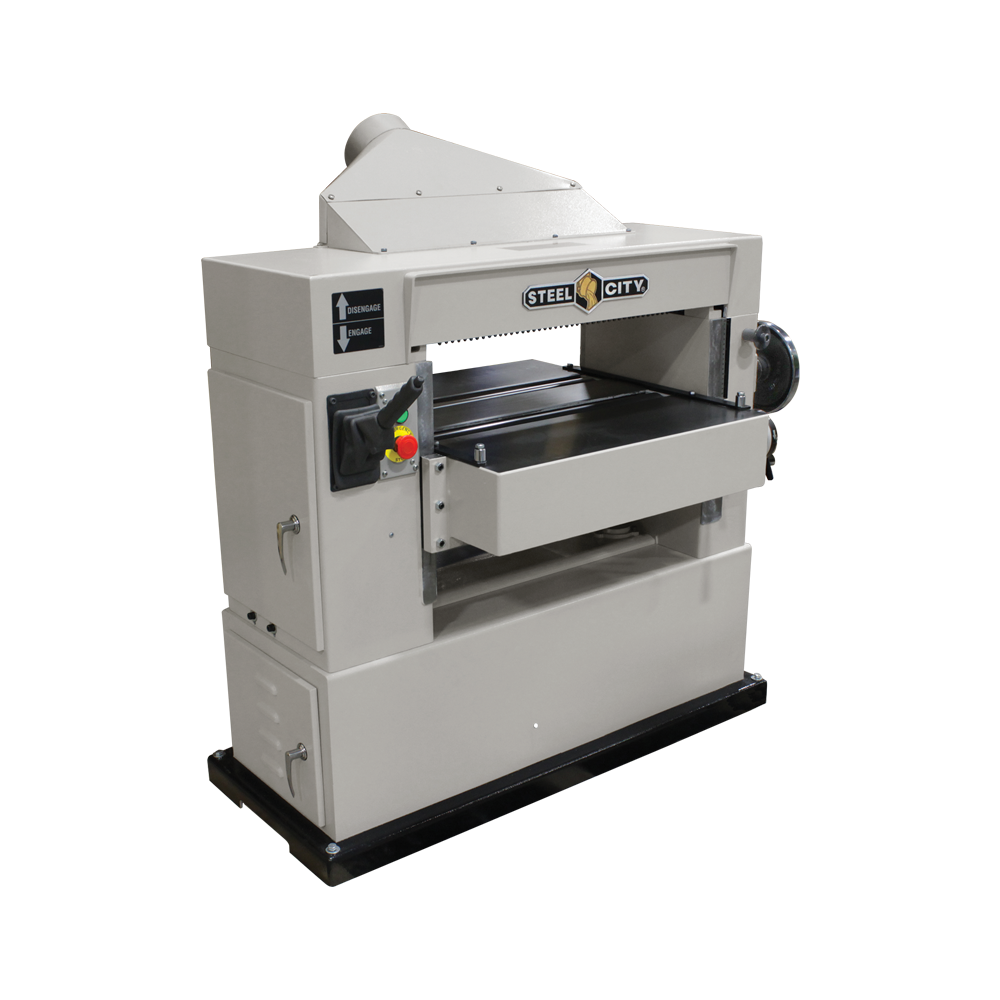

24" Planer with Perform Cutterhead 35-510 T4
Regular price
$0.00
Shipping calculated at checkout
SKU: 35-510 T4
Characteristics:

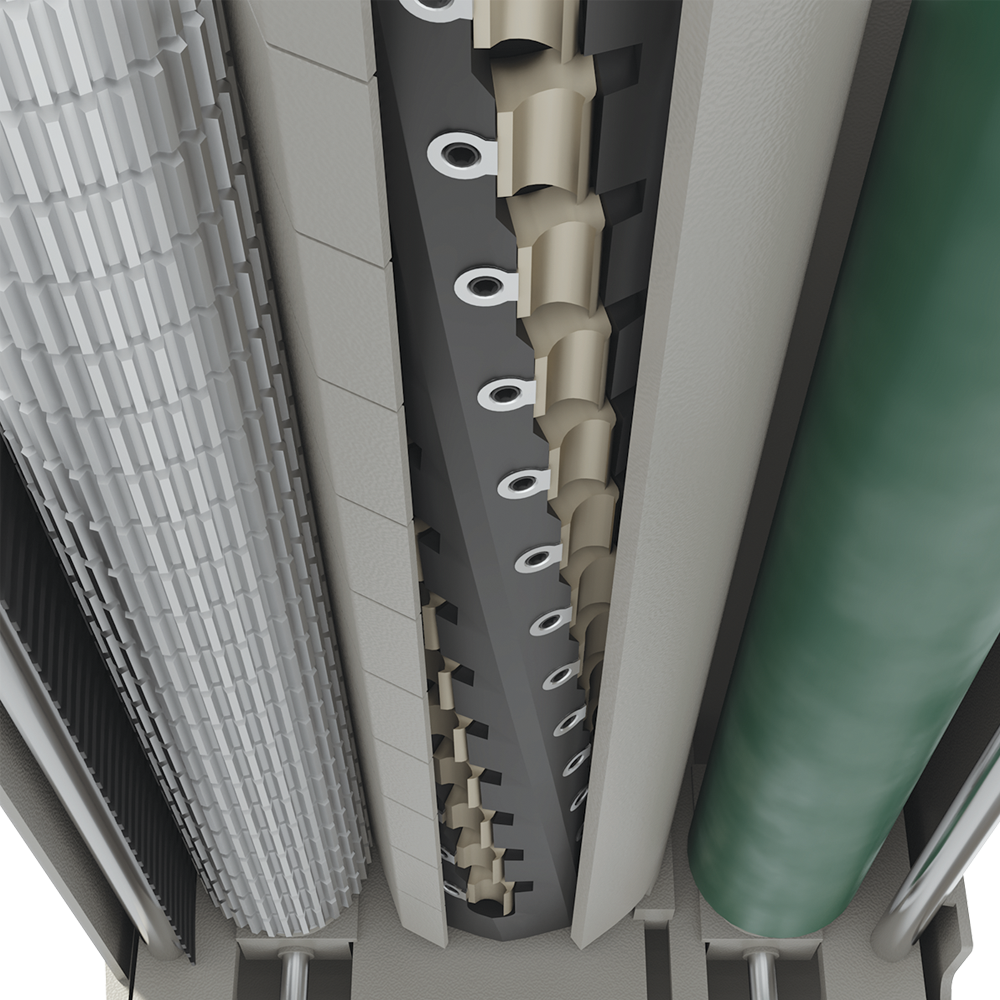

- Perform cutter head with 30mm reversible carbide inserts wprovides longer edge life with fewer insert replacements thus reducing cost and downtime
- Perform cutter head with 30mm reversible carbide inserts provides longer edge life with fewer insert replacements thus reducing cost and downtime
- Hinged side panel access doors for easy feed rate changes 20 and 30 ft/min.
- Sectional serrated steel infeed roller with sectional chip breaker for planning uneven stock

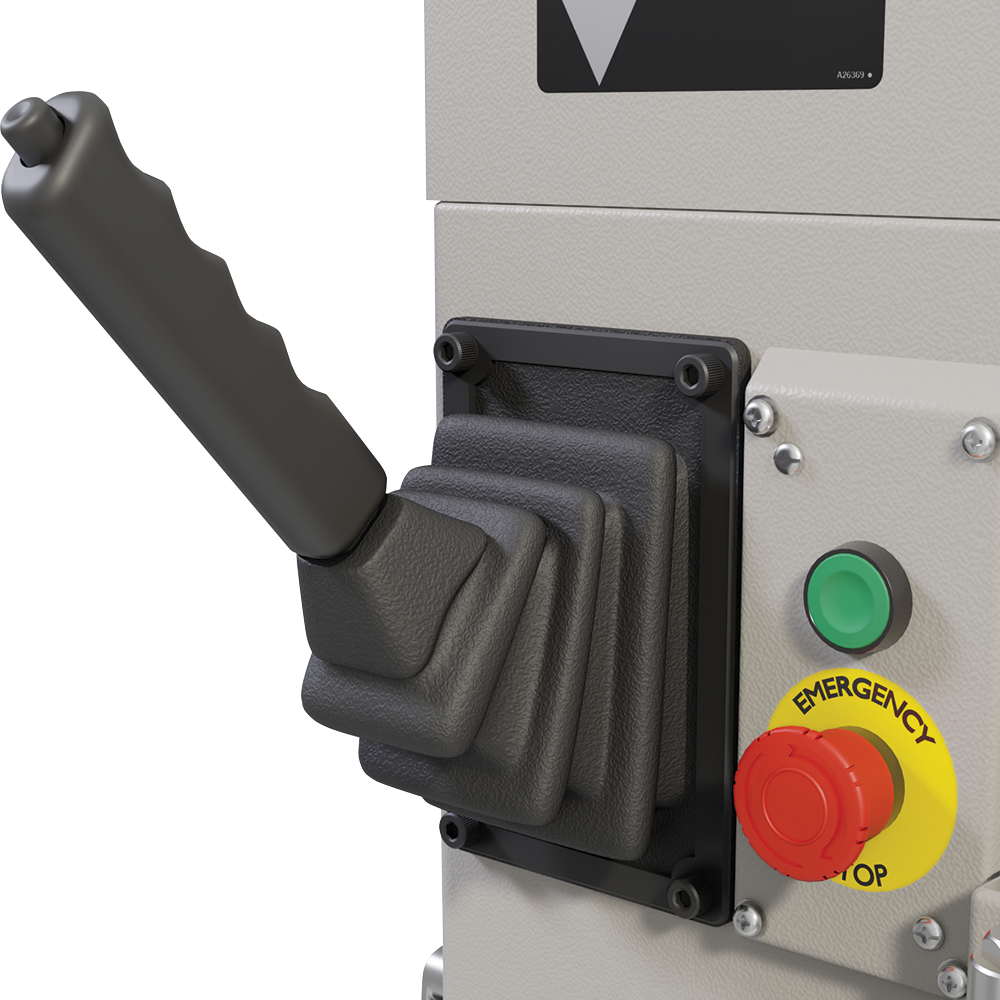

- Up-front controls include a handy lever for instantly engaging and disengaging feed rolls
- Push button ON/OFF switch

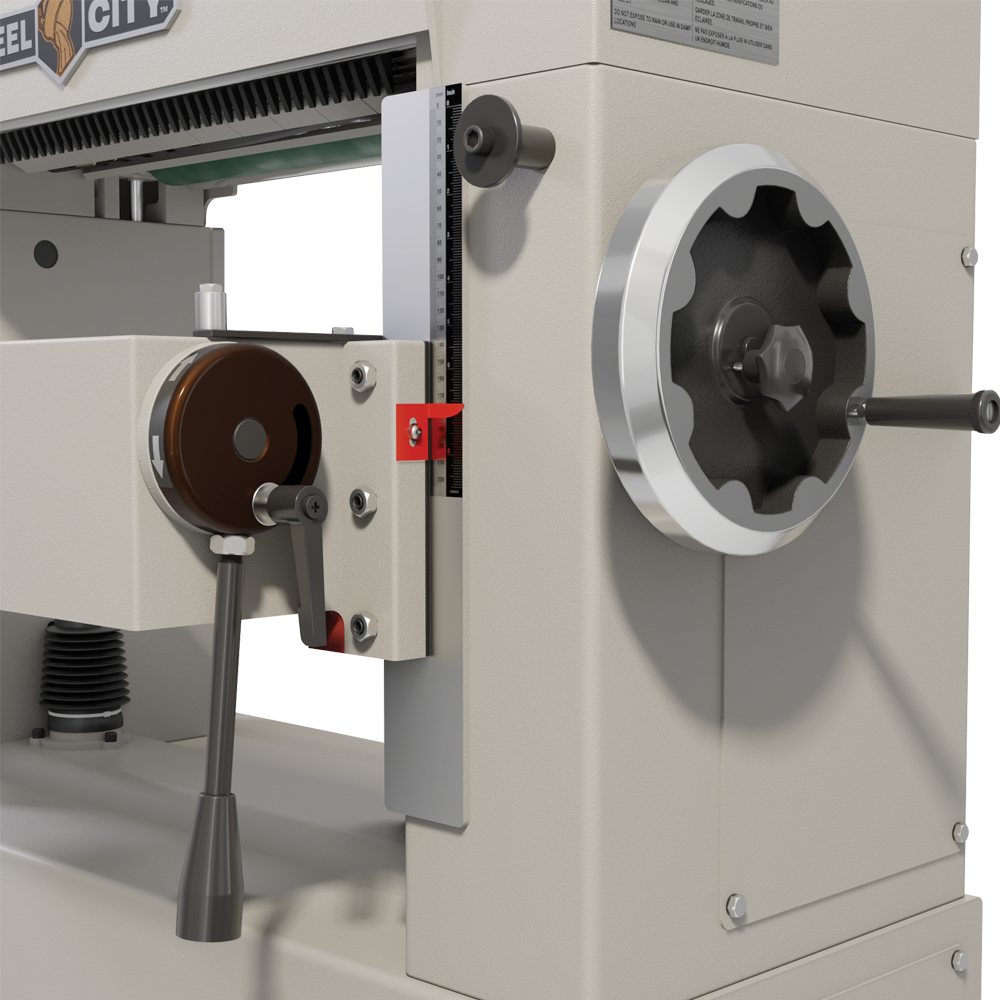

- Micro-adjustable bed rollers lever quickly raises and lowers bed rolls

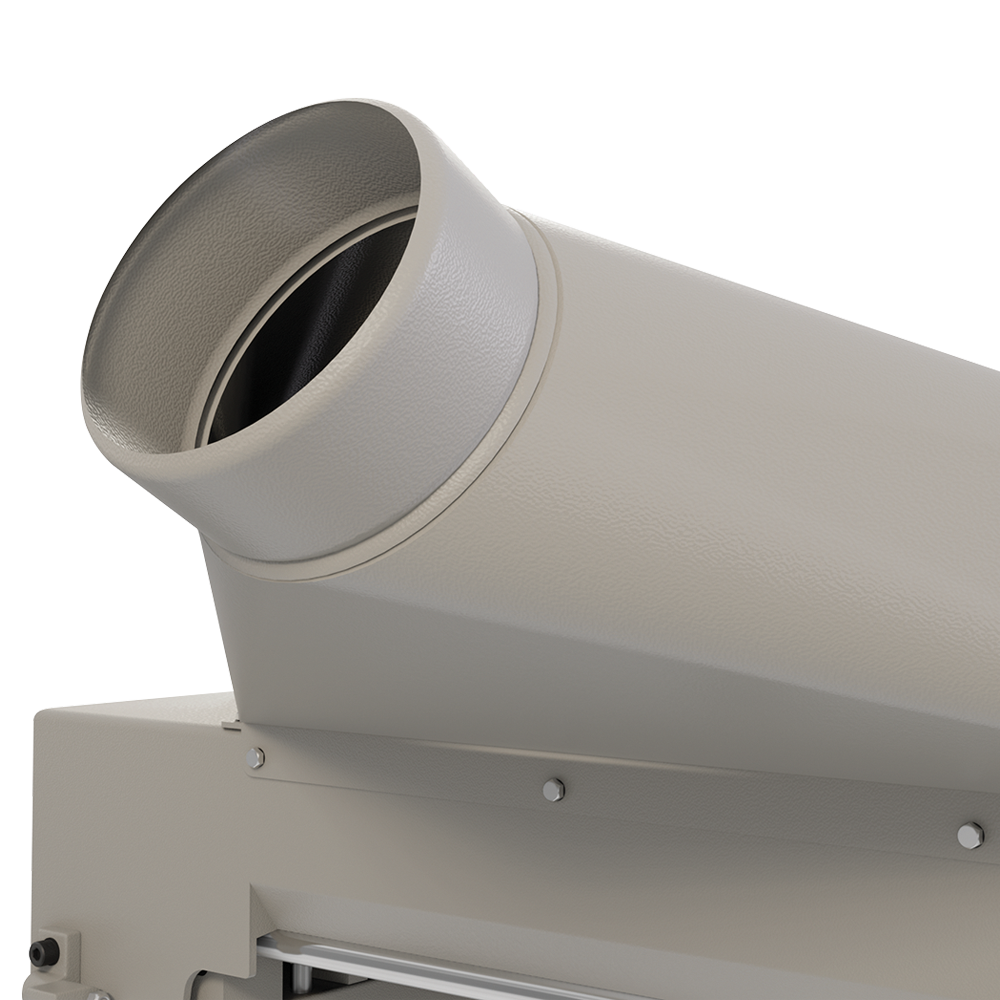

- 6” Dust outlet
Technical Specifications
| Motor | 10 HP - 600V - 3 ph - 10A |
| Max. width | 24” (610 mm) |
| Max. thickness | 8” (203 mm) |
| Min. length | 8” (203 mm) |
| Feed rate | 20/30 ft/min (6/9.1 m/min) |
| Dust outlet | 1 x 6” |
| Dimensions | 914 mm x 1219 mm x 1270 mm |
| Weight | 980 lb (445 kg) |
